Project Overview
Client - A J Bates Surfaces
Date - October 2021
Type of system - Custom Machine Build - Automated Board Flipper
Control system - Beckhoff
Industry - Manufacturing
The challenge
Manually lifting, sorting and stacking large boards is a labour intensive task, requiring multiple operators.
The solution

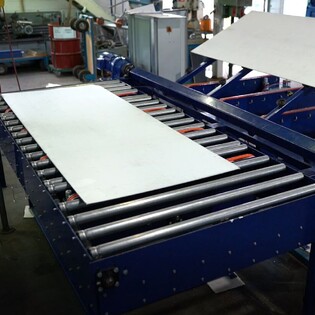

A custom designed automated board flipper arm was implemented along with a new conveyor line.
The tech

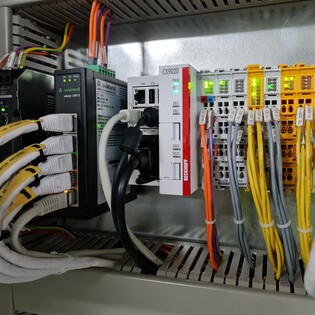

A Beckhoff IPC with integrated TwinSAFE safety provides a compact, all-in-one solution for PLC control and safety. Communicating with ABB VSDs and remote IO.

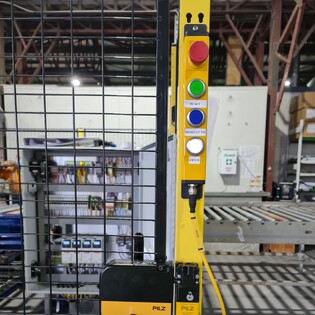

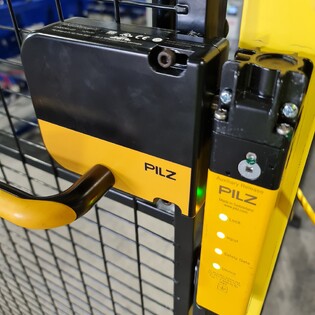

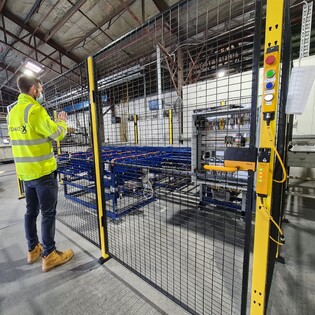

New safety fencing was provided to keep operators safe, with Pilz request-to-enter door locks.
